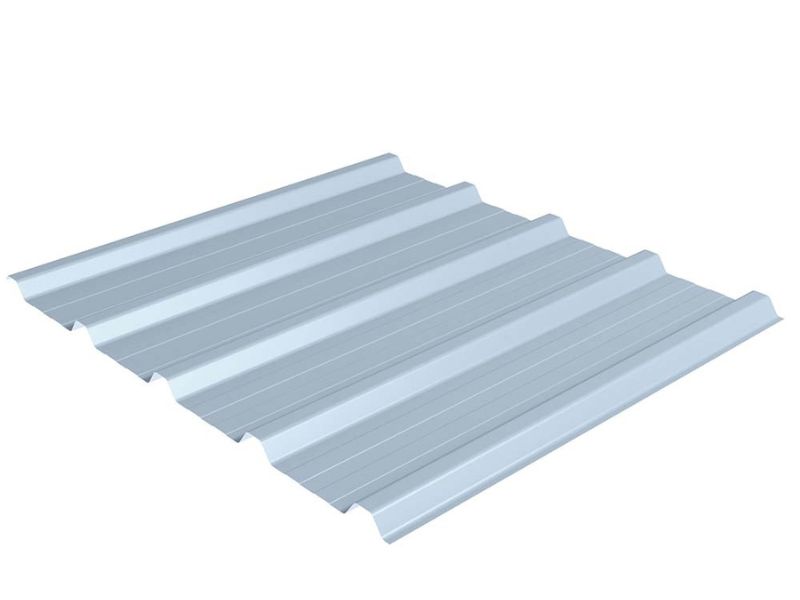

Trimform TF324P-L Liner Profile

TF324P-L is a liner profile for use within insulated roofing and walling systems.

Description

TF324P-L has 32mm deep ribs at 250mm centres. It is UKCA marked, non-fragile to ACR[M]001 when fixed and available in 0.7mm steel with a bright white polyester finish as standard, other finishes such as plastisol and 0.5mm steel are available on enquiry. TF324P-L in 0.7mm steel is walkable and a working platform once fully fixed. When sealed TF324P-L will provide the vapour control layer and air barrier layer.

The profiles are available in a wide range of materials, colours and finishes for single skin, insulated twin skin, composite and fibre cement systems, including anti-con and vented profiles.

Profile depth: 32mm
Profile cover width: 1000mm
Profile pitch: 250mm
Nominal profile weight: 0.7mm = 6.49kg/m2
Pack weight: Max 2.0t
Lengths: Minimum length 1.00m, Maximum length 10.00m



Brochure Technical Datasheet
Trimform Profile Range TF324P-L
