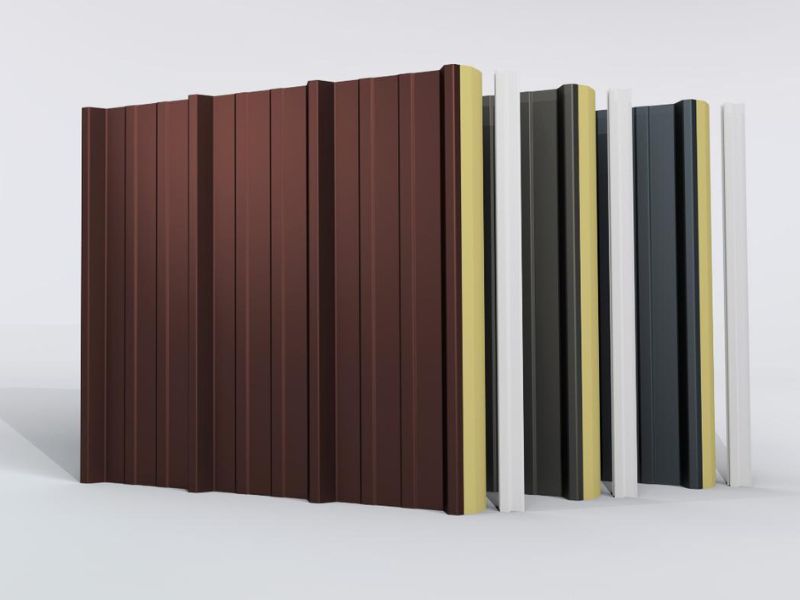

Joris Ide JI Roof Plus 1000 Roof Panel
Joris Ide JI Roof Plus 1000 Roof Panel - Image 2

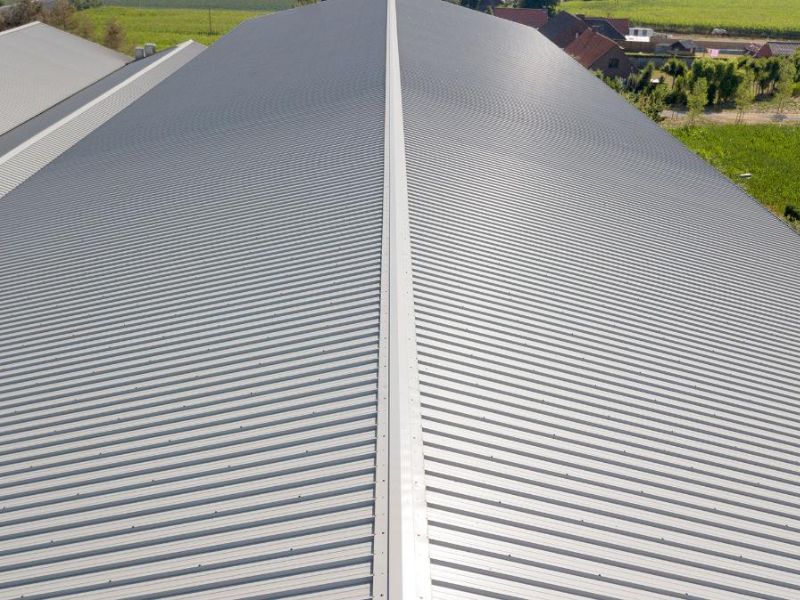

Joris Ide JI Roof Plus 1000 Roof Panel - Image 3

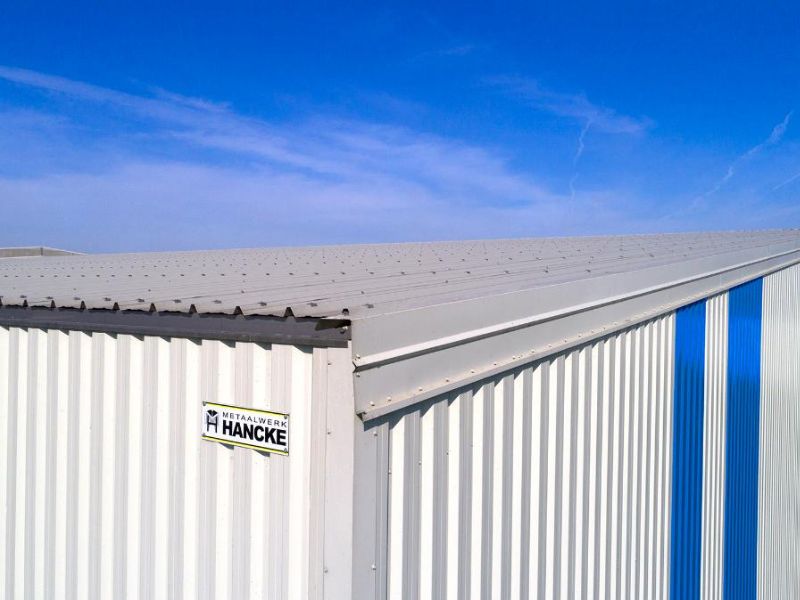

Joris Ide JI Roof Plus 1000 Roof Panel - Image 4

Joris Ide JI Roof Plus 1000 Roof Panel

JI Roof Plus 1000 is an insulated roof panel suitable for pitched roofs. The sandwich panel consists of a trapezoidal outer sheet, a polyisocyanurate (PIR) foam core without harmful CFC-HCFC compounds, and a polyester inner sheet.

Description

This panel is extremely suitable for thermally insulating environments with an aggressive indoor climate. In other words, the ideal solution for your projects in the industrial and agricultural sectors.

Dimensions
Length: Min. 2550.0mm/ max. 20500.0mm
Width: Max. 1000.0mm

Specifications
Thickness (mm)Weight (kg/m2)U (W/m2K)R (m2.K/W)
40.08.260.52.0
60.09.020.342.9
80.09.780.263.8
100.010.540.214.7



Brochure Technical Datasheet
Guide Handling & Storage JI Roof Plus 1000
Brochure Datasheet
