Name: Kingspan QuadCore Lo-Pitch Roof Panel
SKU: 20742
Availability: InStock

Kingspan QuadCore Lo-Pitch Roof Panel

Lengths

Brand

Clear

QuadCore Lo-Pitch Roof Panel is a secret-fix, shallow-profiled roof insulated panel with raised side joints. This system is ideal for all applications where the roof pitch is 1.5º or more after deflection

Description

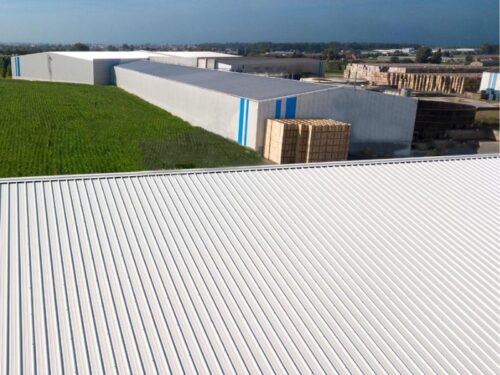

QuadCore Lo-Pitch Roof Panel is a secret-fix, shallow-profiled roof insulated panel with raised side joints. This system is ideal for all applications where the roof pitch is 1.5º or more after deflection. The system can deliver an architecturally streamlined roof and is designed to blend with the surroundings.

Suitable for pitched roofs of 1.5° or more after deflection
Standard lengths from 2.0 – 14.5 m. See technical information for non-standard lengths available

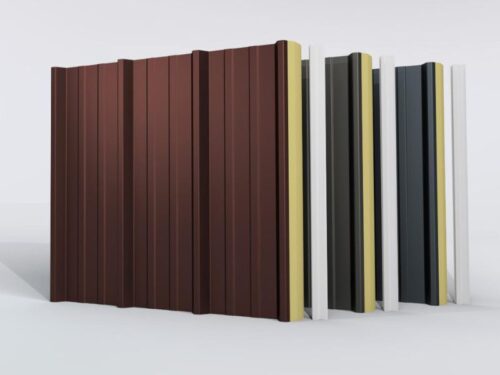

Upstand profile along panel side joint with minor profiles across the panel width
Secret-fix appearance created with fixings concealed with site applied capping strip

Additional information

Lengths	Standard: 2.0m – 14.5m, Longer: 14.5m – 29.2m, Shorter: Below 2.0m
Brand	Kingspan

Applications:

QuadCore® Lo-Pitch Roof Panels are secret-fix, profiled, insulated roof panels which can be used for building applications with roof pitches of 1.5°or more after deflection.

Insulation Core:

QuadCore® Lo-Pitch Roof Panels are manufactured with an HCFC, CFC and HFC free QuadCore® insulation core.

Environmental:

Kingspan Insulated Panels produced in the UK are certified to BES 6001 (Framework Standard for the Responsible Sourcing of Construction Products) ‘Very Good’.
All Kingspan Insulated Panels manufacturing facilities across the UK and Ireland are 100% Net Zero Energy. In addition, facilities located in Kingscourt, Holywell and Sherburn generate renewable energy onsite which contributes to that sites energy mix.
Kingspan Insulated Panels procure steel that is made from 15 – 25% recycled content. Kingspan insulated panels directly contribute to BREEAM® / LEED® credits.

Dimensions, Weight & Thermal Performance
Core Thickness (mm)	40	53
Overall Thickness (mm)	71	84
U-value (W/m²K)	0.47	0.35
Weight (kg/m²)	9.0	9.5

Weight includes the weight of cover cap 0.47 kg/m.

The QuadCore® insulation used in QuadCore® Lo-Pitch Roof Panel has a Thermal Conductivity (λ) of 0.019 W/m.K

QuadCore® Lo-Pitch Roof Panel has a Thermal Transmittance (U-Value), calculated using the method required by the Building Regulations Part L2 (England & Wales), Building Standards Section 6 (Scotland), Part L (Republic of Ireland) and Part F2 (Northern Ireland).
