Name: Kingspan PoweRail TD
SKU: 22978
Availability: InStock

Kingspan PoweRail TD

PoweRail TD is a cost-effective PV mounting solution and its lightweight design offers quick and easy installation onto our QuadCore Topdek Roof Panel and other flat roofs.

Description

Benefits of choosing a Kingspan rooftop solar solution

Simple design to ensure your roof integrity and warranty is maintained
Can be sold as a system with roof panel and mounting system or solar PV mounting system only
Compatible with most standard PV modules
Up to 12-year manufacturer warranty
‘Click-fit’ assembly for fast, easy installation
Fixings included

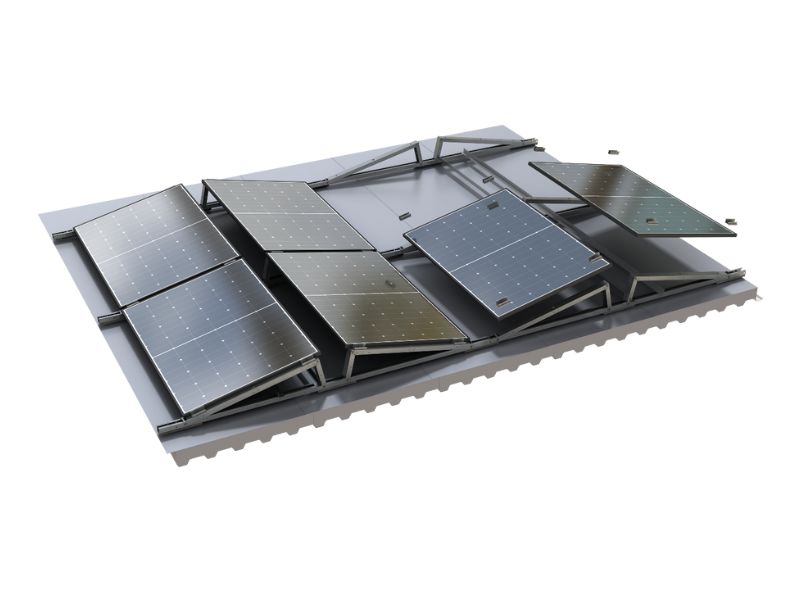

Kingspan PoweRail TD has been developed for the mounting of solar PV modules on to QuadCore® Topdek Roof Panel and other flat roofs. Kingspan PoweRail TD is available in both east / west and south facing configurations.

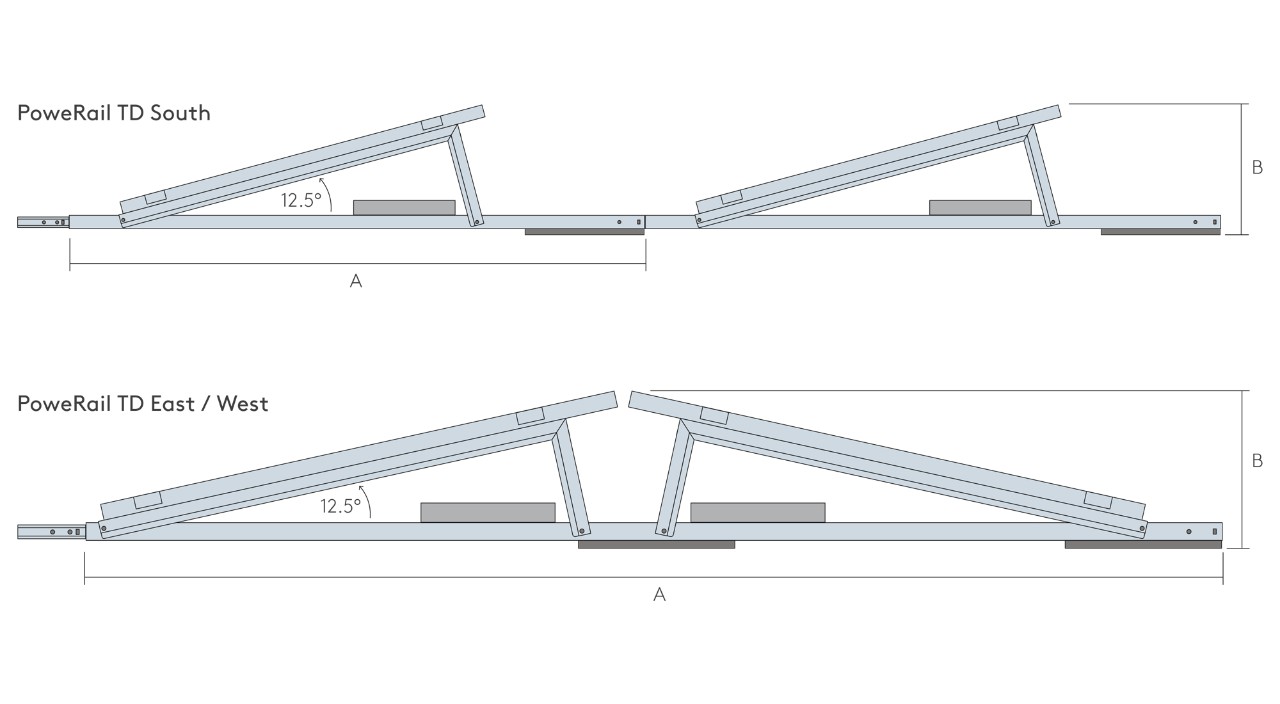

Panel Width A-Pitch (mm) B-Height (mm)
PoweRail TD South
950 – 1310 1600 285 – 320
PoweRail TD East / West
950 – 1055 2300 300 – 320
1056 – 1100 2350 320 – 330
1101 – 1140 2450 330 – 340
1141 – 1250 2600 340 – 355

Weight
<3 kg/m2 frame weight, excluding ballast. Ballast requirements are subject to project specific information.
