Description

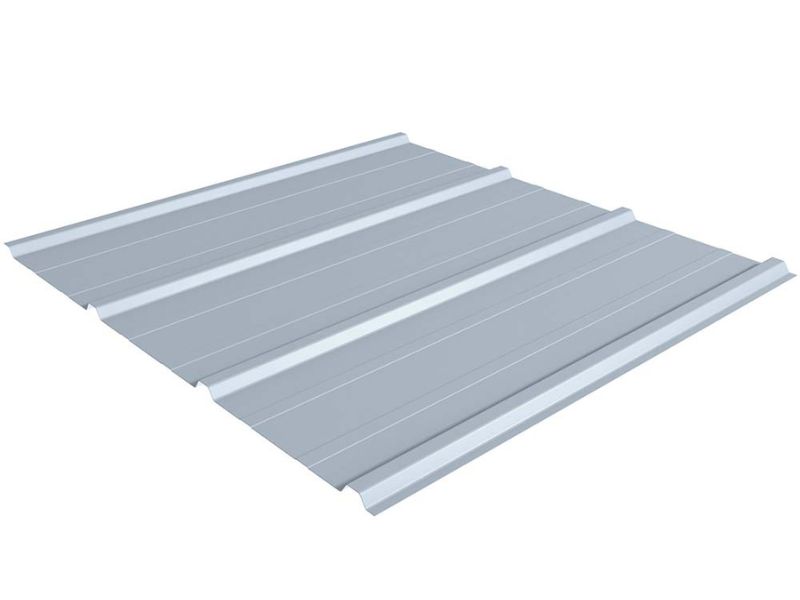

The profile is UKCA marked and non-fragile to ACR[M]001 when fixed and sealed at end and side laps, but not walkable. It is available in 0.4mm steel with a bright white polyester finish as standard. When sealed TF17-1000WL will provide the vapour control layer and air barrier layer.
The profiles are available in a wide range of materials, colours and finishes for single skin, insulated twin skin, composite and fibre cement systems, including anti-con and vented profiles.
Profile depth: 17mm
Profile cover width: 1000mm
Profile pitch: 333mm
Nominal profile weight: 0.38mm = 3.5kg/m2
Pack weight: Max 2.0t
Lengths: Minimum length 0.2m, Maximum length 5.5m
| Brochure | Technical Datasheet |
| Trimform Profile Range | TF17/1000-WL |
 |
|
