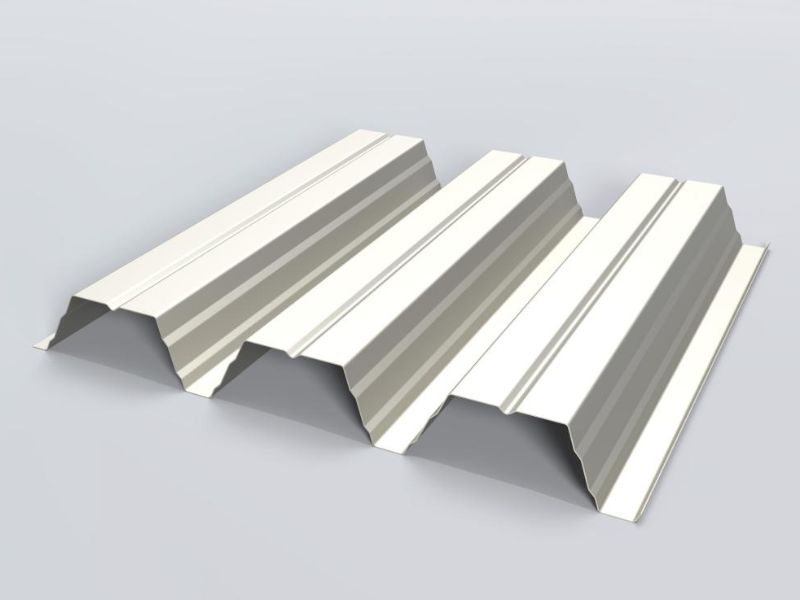

Joris Ide Highdecks JID 100-275-825
The JID 100-275-825 is a profiled steel sheet designed for flat roof constructions. This steel deck sheet offers a large span and stability for flat roofs in industrial and tertiary applications. This high-profile for flat roofs is available in various dimensions, and other versions are possible upon request.
Dimensions
Length: Min. 1500.0mm/ Max. 13500.0mm
Width: Max. 825.0mm
Thickness & weight
0.75 mm: 8.92 kg/m²
0.88 mm: 10.47 kg/m²
1 mm: 11.89 kg/m²
1.13 mm: 13.44 kg/m²
1.25 mm: 14.87 kg/m²
1.5 mm: 17.84 kg/m²
| Technical Information |
| Datasheet JID 100-275-825 |
 |
