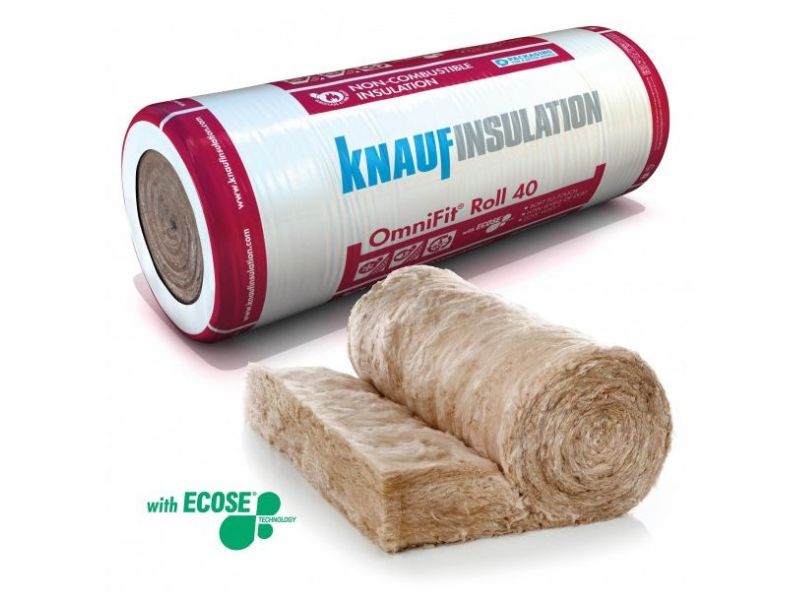

Knauf Insulation OmniFit® Roll 40

OmniFit® Roll 40 is a glass mineral wool roll, designed for use in multiple applications in both timber and steel frame construction. It offers thermal conductivity of 0.040 W/mK, combined with acoustic performance.

Description

OmniFit® Roll 40 is non-combustible with the best possible Euroclass A1 reaction to fire classification, and is manufactured using our unique bio-based binder, ECOSE® Technology.

Benefits:

  • OmniFit® products come with a range of sustainability credentials, including lower embodied carbon than alternative low density rock mineral wool products.

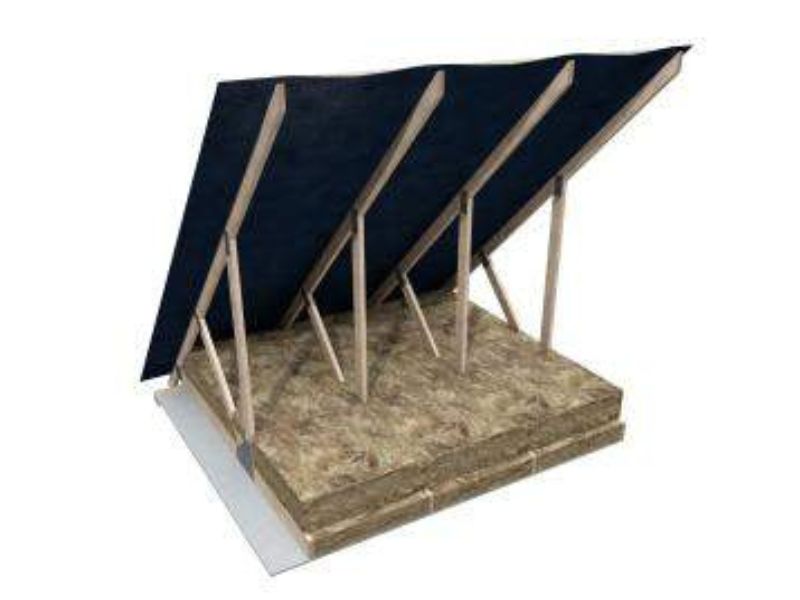

  • Multi-purpose product that can be used to insulate a wide range of applications, reducing the need to purchase multiple products.

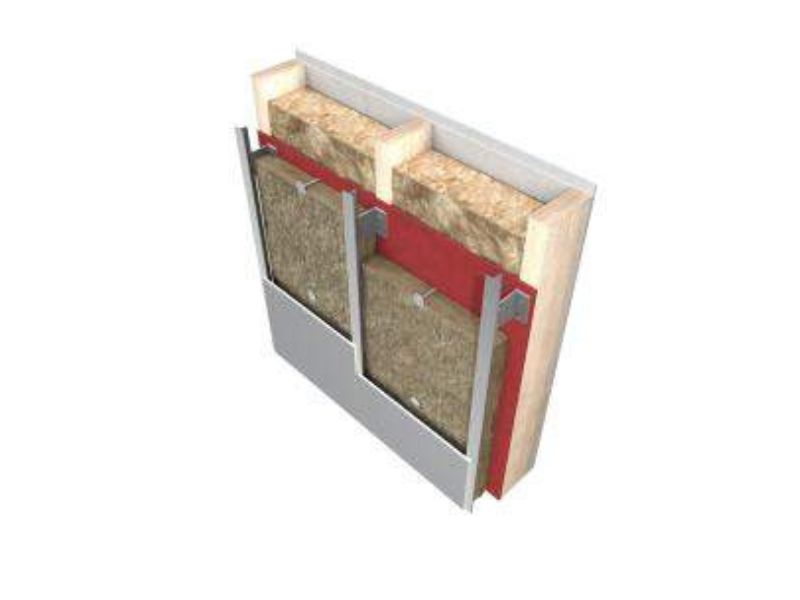

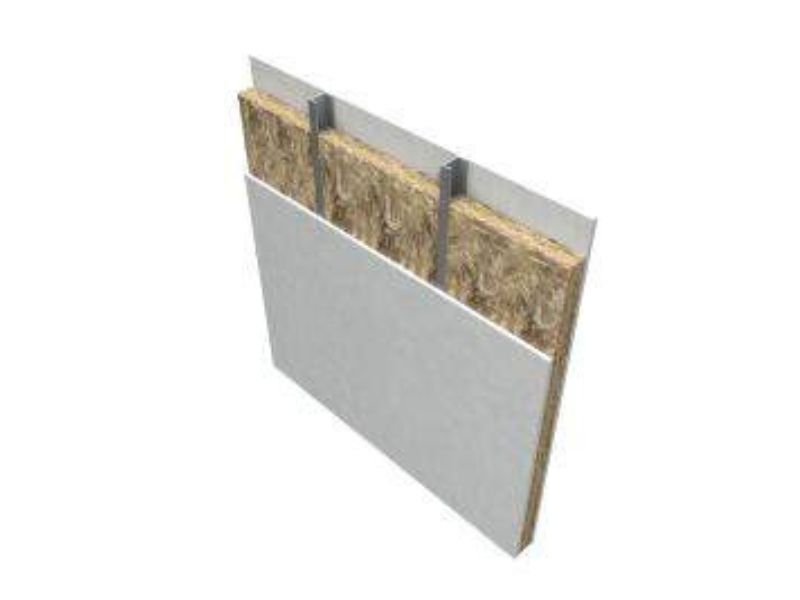

  • Partially perforated rolls for use in either timber or steel frame applications at 400mm or 600mm centres.
  • Designed to friction fit between studs, which prevents air movement and infiltration around the edges, minimising heat loss.
  • Compression packed with more product on a pallet than alternative products.
  • Manufactured from mineral wool which provides the best levels of sound absorption and reduction compared to other mainstream insulants.
Specifications
Thickness (mm)Length (mm)Width (mm)Thermal Conductivity (W/mK)R-value (m2K/W)Area per roll (m2)Euroclass Reaction to Fire ClassificationRoll TypeQuantity per packPacks per pallet
10068001200 (2x600 or 3x400)0.0402.508.16A1Combi-cut140
15045501200 (2x600 or 3x400)0.0403.755.46A1Combi-cut140
20034001200 (2x600 or 3x400)0.0405.004.08A1Combi-cut140



Product Datasheet Helpsheet Safety Datasheet
OmniFit® Roll Glass Mineral Wool – BREEAM Glass Mineral Wool with ECOSE Tech
