Description

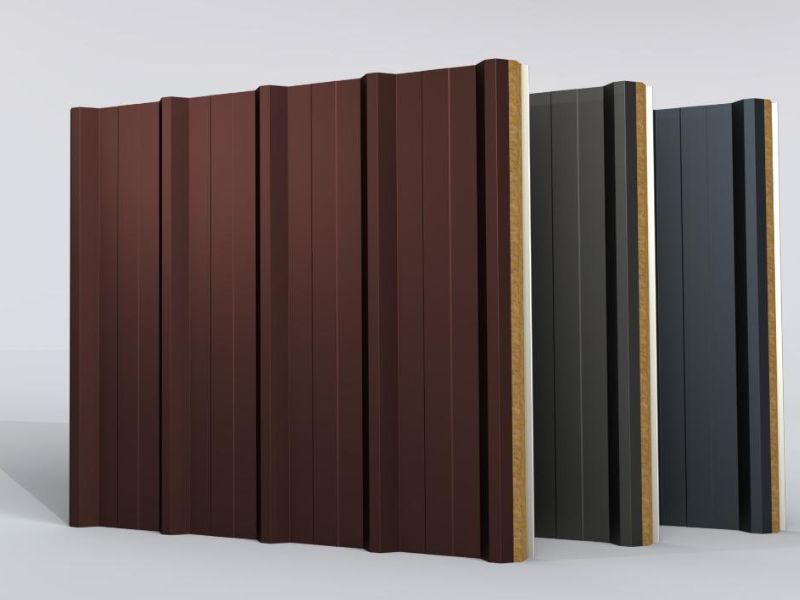

The composite panel consists of a trapezoidal outer steel sheet, a mineral wool core and a slightly profiled inner steel sheet. The thickness of up to 200 mm allows for high fire resistance and sound reduction. In short, the solution for your projects in the agricultural, industrial, service and even residential sectors with acoustic and fire resistance requirements.
Dimensions
Length: Min. 2500.0mm/ max. 13500.0mm
Width: Max. 1000.0mm
| Specifications | |||
|---|---|---|---|
| Thickness (mm) | Weight (kg/m2) | U (W/m2K) | R (m2.K/W) |
| 50.0 | 15.65 | 0.77 | 1.25 |
| 60.0 | 16.58 | 0.66 | 1.5 |
| 80.0 | 18.64 | 0.51 | 1.95 |
| 100.0 | 20.64 | 0.41 | 2.4 |
| 120.0 | 22.64 | 0.35 | 2.85 |
| 150.0 | 25.57 | 0.28 | 3.55 |
| 175.0 | 28.08 | 0.24 | 4.1 |
| 200.0 | 30.71 | 0.21 | 4.65 |
