Description

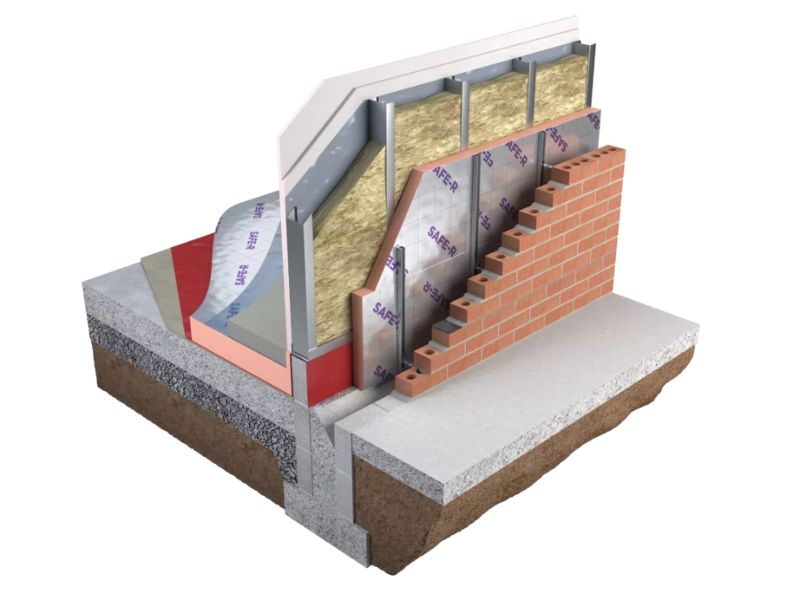

With a Euroclass C s1 d0 Fire Classification the framing board can be used between studs or as an insulated sheathing board.
Using SR/FB provides excellent U-Values and improved thermal bridging detailing.
Product Properties:
Product Details
Product name SR/FB
Material Code Please refer to packing list
Type Phenolic Insulation
Application Wall
Thickness 50mm, 60mm, 75mm, 80mm, 100mm
Inner facing composite Foil facing
Outer facing composite Foil facing
Thermal conductivity 0.020 – 0.021 (W/mK)
Compressive strength CS (10\Y) 100
Unit of measurement mm
Size/Dimensions 2400 x 1200mm
Reaction to fire Euroclass C s1 d0
Installation guidelines Please refer to marketing materials
EPD An Environmental Product Declaration (EPD), certified by IGBC is available for this product.
