Description

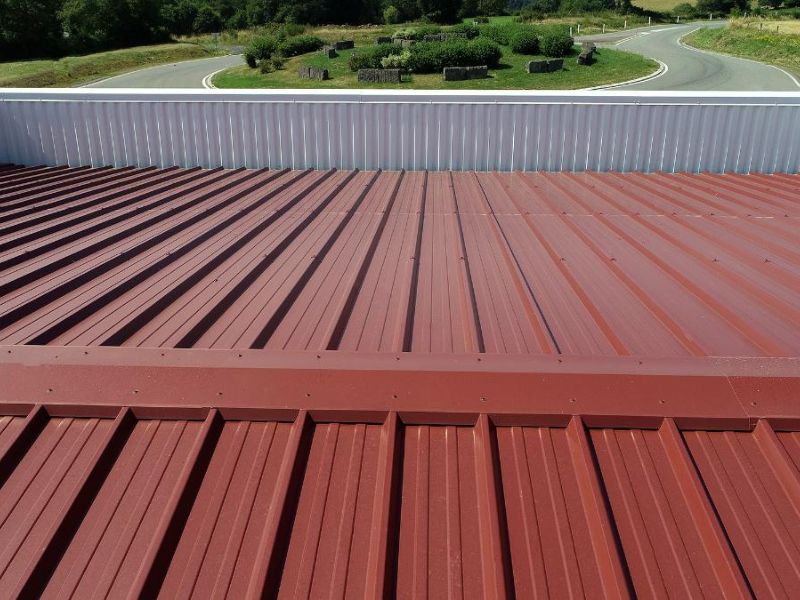

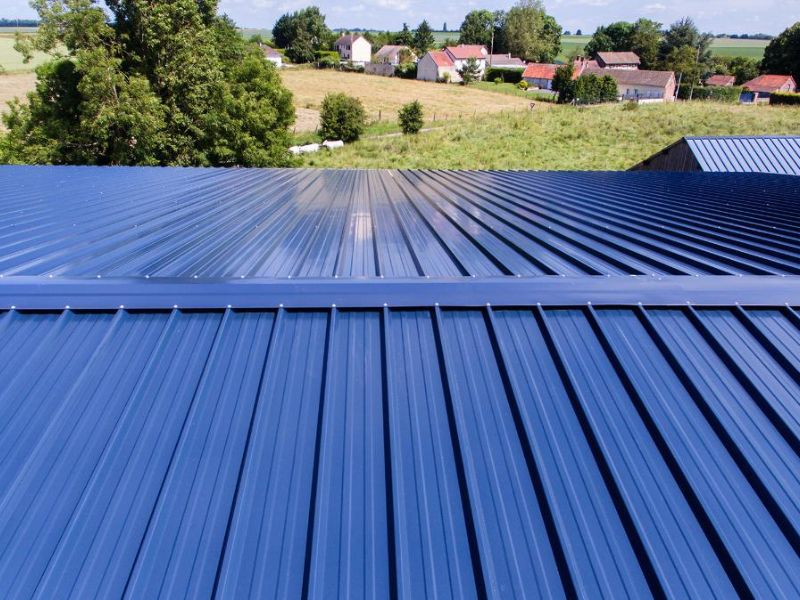

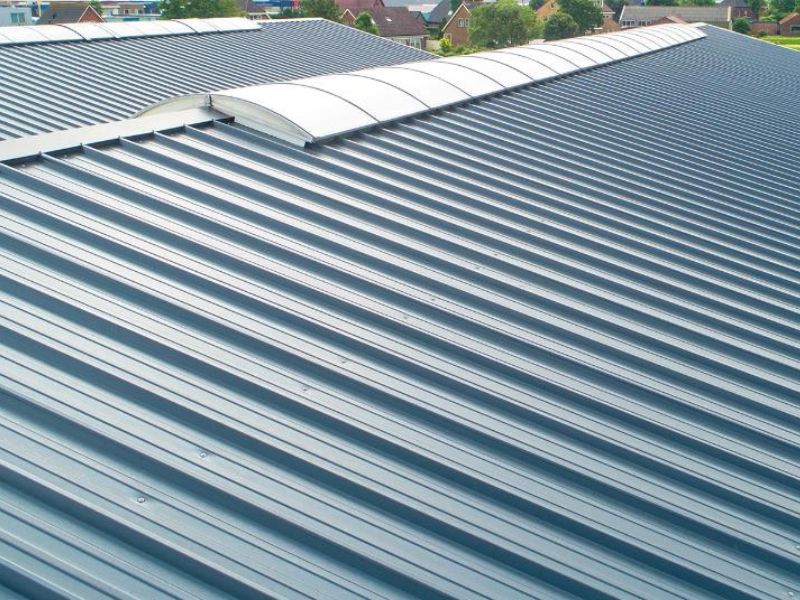

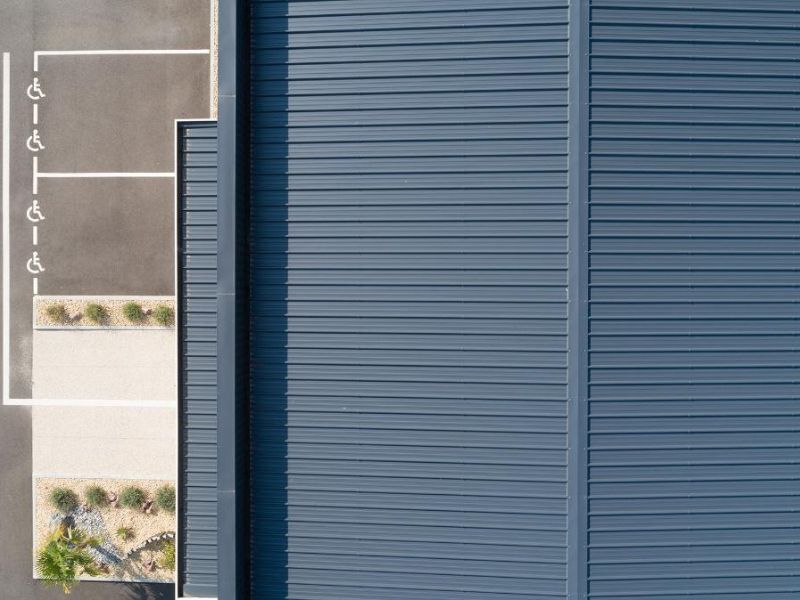

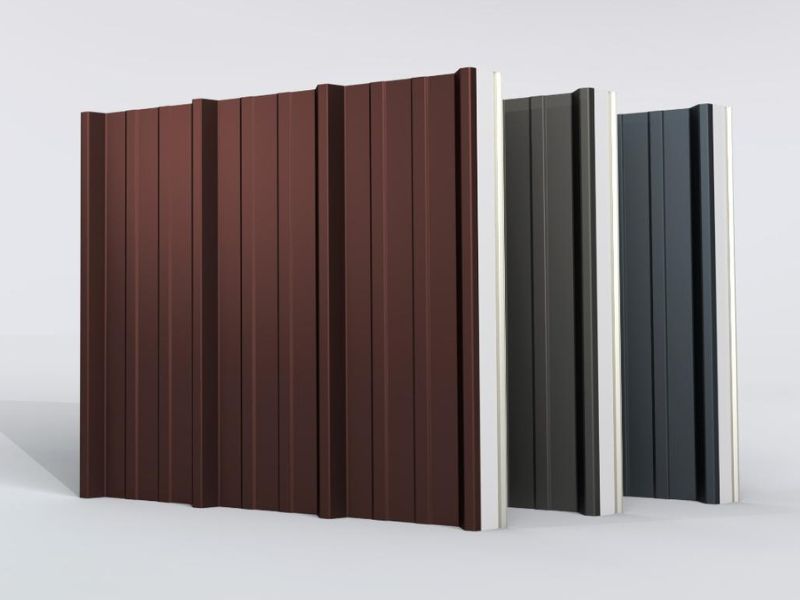

The JI Roof 1000 Trapezoidal Insulated Roof Panel is used for pitched roofs or horizontal and vertical wall applications, and as an external insulated cladding panel for industrial, commercial and public buildings. Due to its rigid PIR core and metal inner and outer sheet, it combines thermal resistance with large spanning capability. The minimum roof pitch to be applied is 4° or more after deflection.
Dimensions
Length: Min. 2550.0mm/ max. 20500.0mm
Width: Max. 1000.0mm
| Specifications | |||
|---|---|---|---|
| Thickness (mm) | Weight (kg/m2) | U (W/m2K) | Rw (dB) |
| 30.0 | 10.38 | 0.65 | 24.0 |
| 40.0 | 10.76 | 0.5 | 24.0 |
| 60.0 | 11.52 | 0.34 | 24.0 |
| 80.0 | 12.28 | 0.25 | 25.0 |
| 100.0 | 13.04 | 0.2 | 26.0 |
| 120.0 | 13.78 | 0.16 | 26.0 |
| 150.0 | 14.94 | 0.14 | 27.0 |
