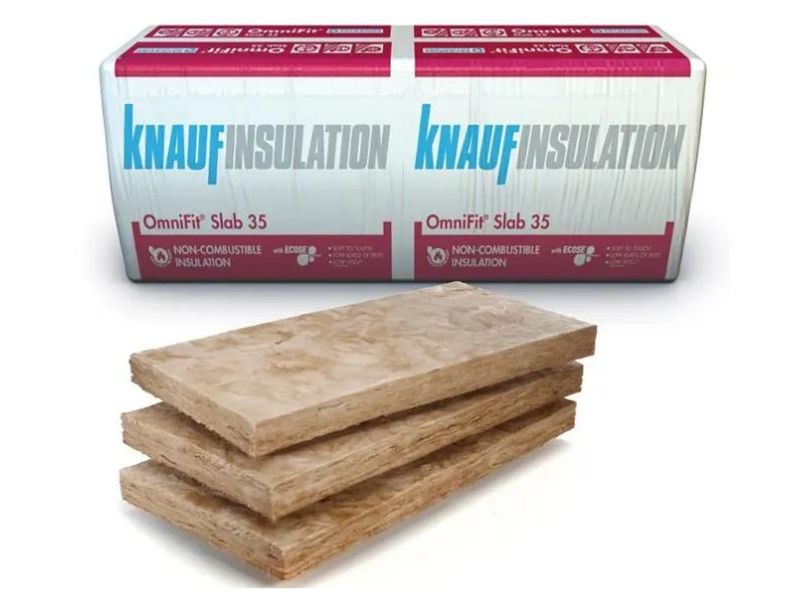

Knauf Insulation OmniFit® Slab 35

OmniFit® Slab 35 is a glass mineral wool slab, designed for use in multiple applications, and holds an Agrément certificate by the BBA for use in both timber and steel frame construction. It offers thermal conductivity of 0.035 W/mK, combined with acoustic performance.

Description

OmniFit® Slab 35 is non-combustible with the best possible Euroclass A1 reaction to fire classification, and is manufactured using our unique bio-based binder, ECOSE® Technology.

Benefits:

  • OmniFit® Slab 35 holds an Agrèment certificate by the BBA (under reference number 24/7110) for use as insulation between rainscreen façade systems.
  • OmniFit® products come with a range of sustainability credentials, including lower embodied carbon than alternative low density rock mineral wool products.
  • Multi-purpose product that can be used to insulate a wide range of applications, reducing the need to purchase and handle multiple products.
  • Manufactured size allows friction fitting between common stud centres without any cutting and waste on-site.
  • Designed to friction fit between studs, which prevents air movement and infiltration around the edges, minimising heat loss.
  • Compression packed with more product on a pallet than alternative rock mineral wool products.
  • Manufactured from mineral wool which provides the best levels of sound absorption and reduction compared to other mainstream insulants.
Specifications
Thickness (mm)Length (mm)Width (mm)Thermal Conductivity (W/mK)R-value (m2K/W)Euroclass Reaction to Fire ClassificationQuantity per packPacks per pallet
5012004000.0351.40A11236
5012006000.0351.40A11224
7012006000.0352.00A1832
7512006000.0352.10A1832
9012006000.0352.55A1636
10012006000.0352.85A1632
10012004000.0352.85A1642
14012006000.0354.00A1436
14012004000.0354.00A1448
15012006000.0354.25A1432



Product Datasheet Helpsheet Safety Datasheet
OmniFit® Slabs Glass Mineral Wool – BREEAM Glass Mineral Wool with ECOSE Tech
