Description

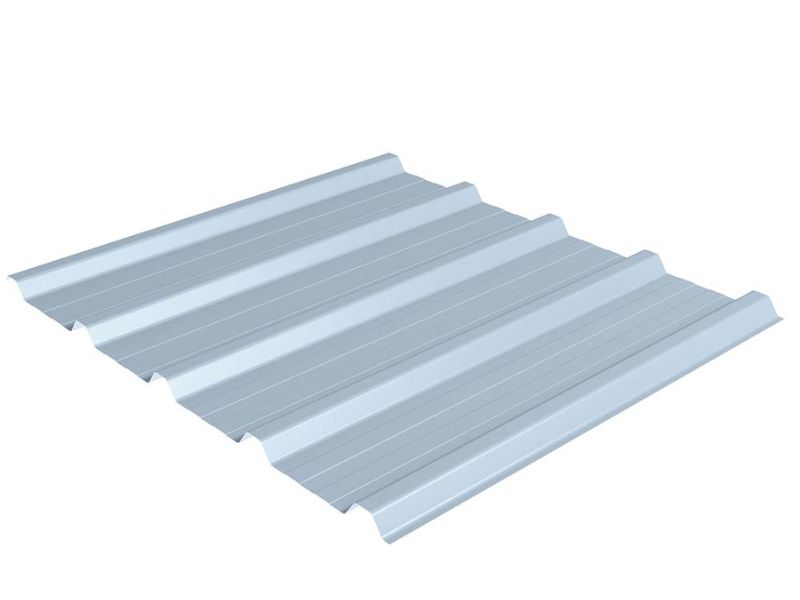

TF325P-L has 32mm deep ribs at 200mm centres. It is UKCA marked, non-fragile to ACR[M]001 when fixed and available in 0.7mm steel with a bright white polyester finish as standard, other finishes such as plastisol and 0.5mm steel are available on enquiry. TF325P-L in 0.7mm steel is walkable and a working platform once fully fixed. When sealed TF325P-L will provide the vapour control layer and air barrier layer.
The profiles are available in a wide range of materials, colours and finishes for single skin, insulated twin skin, composite and fibre cement systems, including anti-con and vented profiles.
Profile depth: 29mm
Profile cover width: 1000mm
Profile pitch: 200mm
Nominal profile weight: 0.7mm = 6.7kg/m2
Pack weight: Max 2.0t
Lengths: Minimum length 1.00m, Maximum length 10.00m
