Description

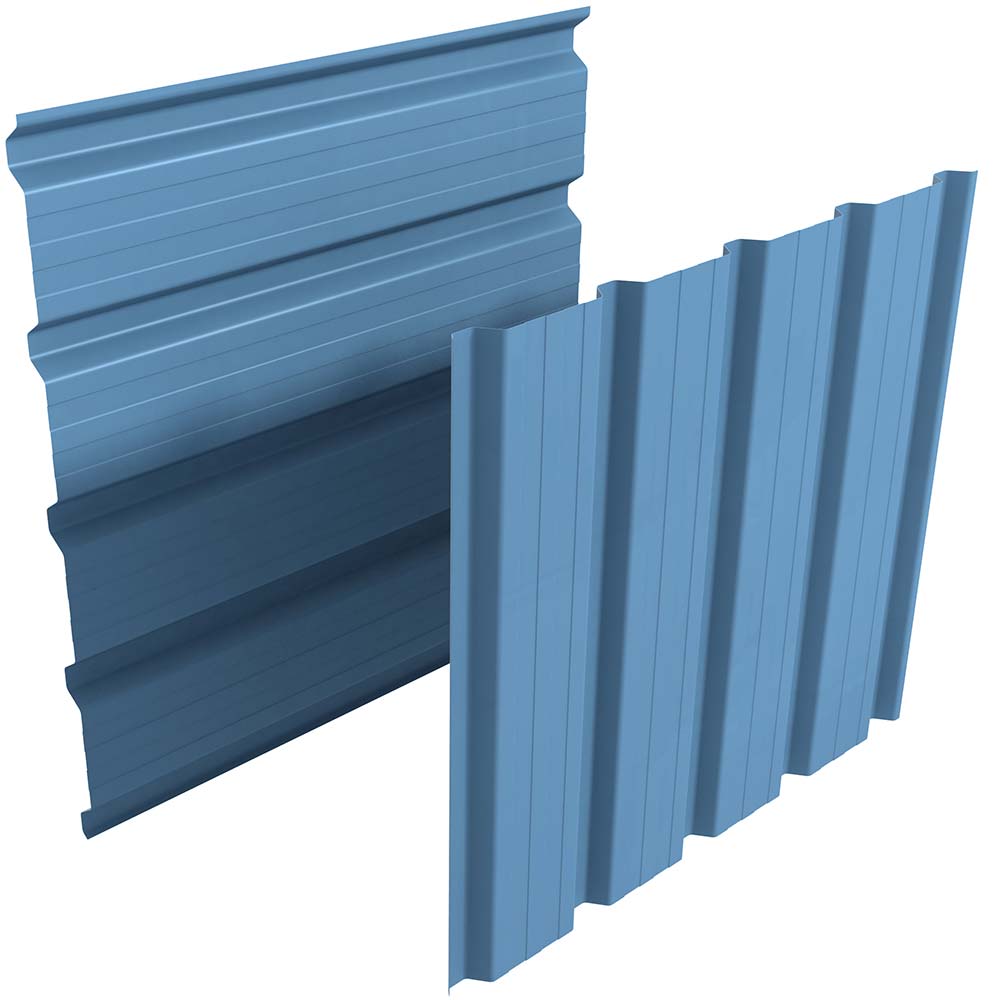

The profile can be used vertically or horizontally, is available in 0.7mm and 0.5mm steel (enquire for aluminium) and has 32mm deep ribs at 250mm centres. The profile is UKCA marked and non-fragile to ACR[M]001 when fixed. Paint finishes include 200 micron plastisol Colorcoat® LG and GP, Colorcoat HPS200 Ultra®, PVdF, polyester and Agri-Steel™ polyester.
The profiles are available in a wide range of materials, colours and finishes for single skin, insulated twin skin, composite and fibre cement systems, including anti-con and vented profiles.
Profile depth: 32mm
Profile cover width: 1000mm
Profile pitch: 250mm
Nominal profile weight: 0.5mm = 4.8kg/m2 0.7mm = 6.7kg/m2
Pack weight: Max 2.0t
Lengths: Minimum length 1.00m, Maximum length 10.00m
