Description

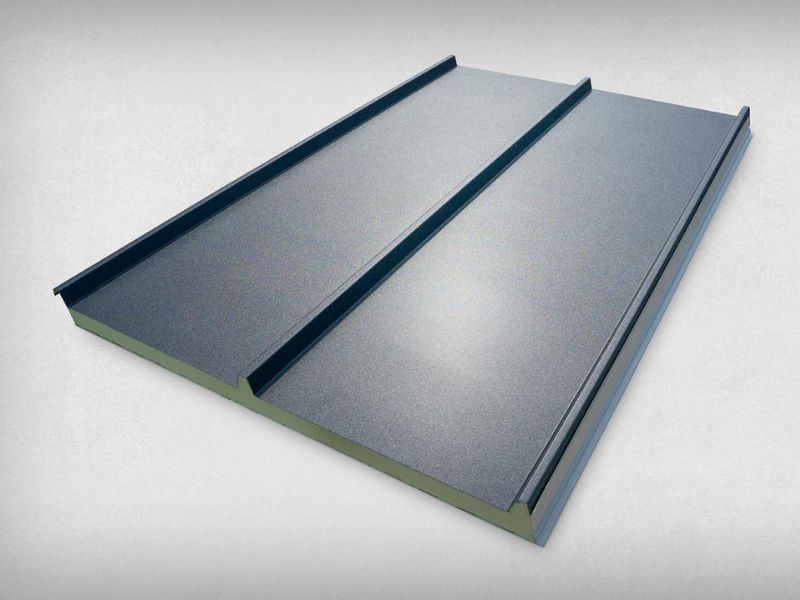

The sandwich panel consists of an aesthetic outer sheet with standing seam, a polyisocyanurate (PIR) foam core without harmful CFC-HCFC and a lightly lined inner sheet. In terms of appearance, JI Vieo Roof 1050 is similar to that of a traditional zinc roof, but thanks to the all-in-one solution, it is a lot faster to install. Thanks to its availability in three thicknesses : 40, 100 and 130 mm, both the thermal and mechanical requirements of different projects can be met.

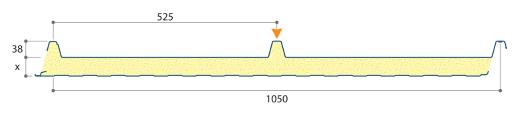

Dimensions
Length: Min. 2550.0mm/ max. 20500.0mm
Width: Max. 1050.0mm
| Specifications | |||
|---|---|---|---|
| Thickness (mm) | Weight (kg/m2) | U (W/m2K) | R (m2.K/W) |
| 40 | 12.42 | 0.49 | 2.0 |
| 100 | 14.69 | 0.21 | 4.8 |
| 130 | 15.89 | 0.16 | 6.35 |
| Guide | Brochure | Technical Datasheet |
| Installation Guide | Guide Handling & Storage | JI Vieo Roof 1050 |
 |
|
|
