Description

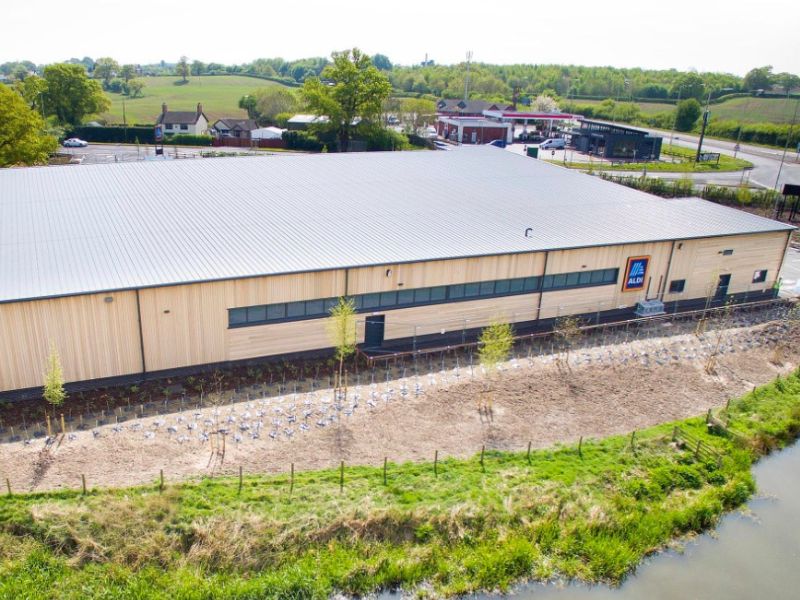

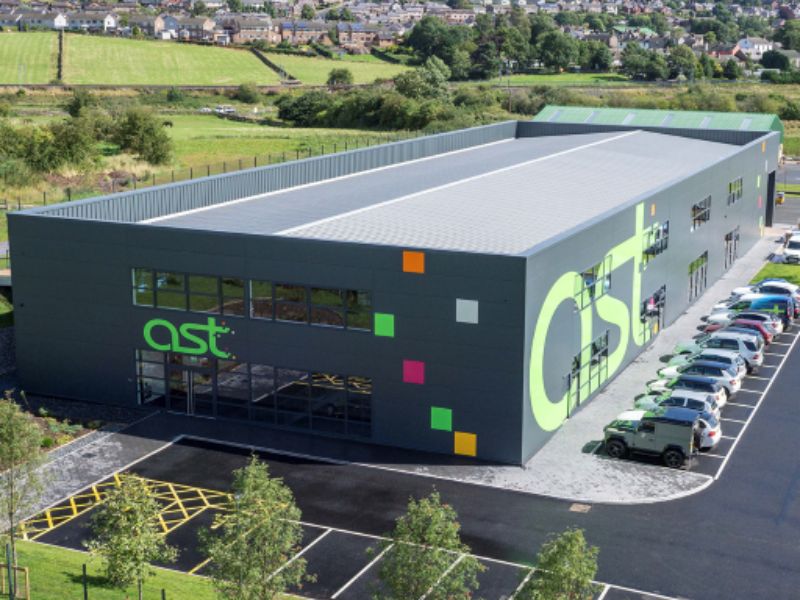

QuadCore KS1000RW Roof Panel is a through-fix profiled insulated roof panel, which can be used for building applications with roof pitches of 4° or more after deflection. The panel is available in a width of 1000 mm. Thanks to the prefabricated nature of the insulated panels, they are quicker to install than traditional roof structures, making the roof instantly wind and water-tight and significantly reducing construction risks.
Additional information
| Lengths | Standard: 1.8m – 14.5m, Longer: 14.5m – 29.2m, Shorter: Below 1.8m |
|---|
Applications:
QuadCore KS1000RW Roof Panels are through-fix, trapezoidal profiled, insulated roof panels which can be used for building applications with roof pitches of 4° or more after deflection.
Insulation Core:
QuadCore KS1000RW Roof Panels are manufactured with an HCFC, CFC and HFC free QuadCore insulation core
Environmental:
Kingspan Insulated Panels produced in the UK are certified to BES 6001 (Framework Standard for the Responsible Sourcing of Construction Products) ‘Very Good’. QuadCore Insulated Panel systems have Environmental Product Declarations in accordance with the requirements of EN 15804:2012+A1: 2013 for 100 mm thickness.
All Kingspan Insulated Panels manufacturing facilities across the UK and Ireland are 100% Net Zero Energy. In addition, facilities located in Kingscourt, Holywell and Sherburn generate renewable energy onsite which contributes to that sites energy mix.
Kingspan Insulated Panels procure steel that is made from 15 – 25% recycled content. Kingspan insulated panels directly contribute to BREEAM® / LEED® credits.
| Dimensions, Weight & Thermal Performance | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Core Thickness (mm) | 40 | 53 | 60 | 73 | 80 | 91 | 100 | 115 | 120 | 137 | 150 |
| Overall Thickness (mm) | 71 | 84 | 91 | 104 | 111 | 122 | 131 | 146 | 151 | 168 | 181 |
| U-value (W/m²K) | 0.47 | 0.35 | 0.31 | 0.25 | 0.23 | 0.20 | 0.18 | 0.16 | 0.15 | 0.13 | 0.12 |
| Weight (kg/m²) | 9.0 | 9.5 | 9.7 | 10.2 | 10.5 | 10.9 | 11.3 | 11.8 | 12.0 | 12.7 | 13.2 |
The QuadCore insulation used in QuadCore KS1000RW Roof Panels have a Thermal Conductivity (λ) of 0.018W/m.K
QuadCore KS1000RW Roof Panels have a Thermal Transmittance (U-Value), calculated using the method required by the Building Regulations Part L2 (England & Wales), Building Standards Section 6 (Scotland), Part L (Republic of Ireland) and Part F2 (Northern Ireland).
