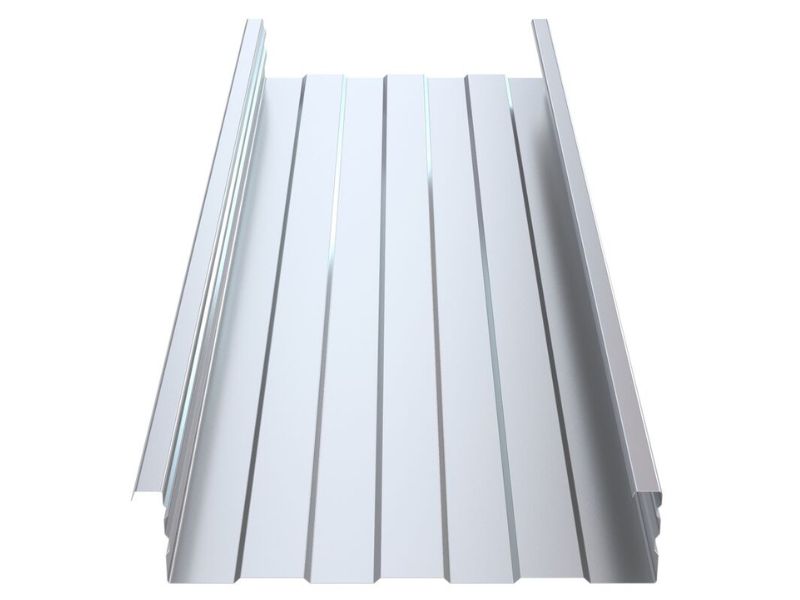

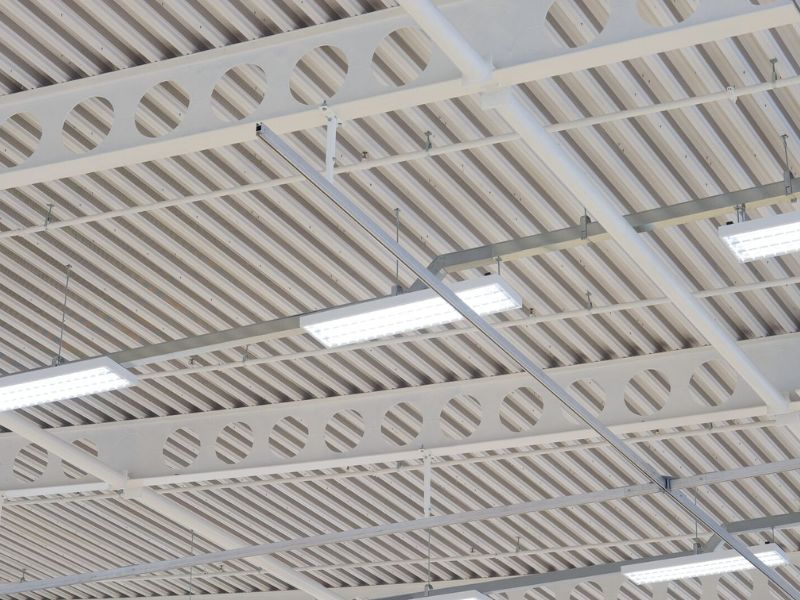

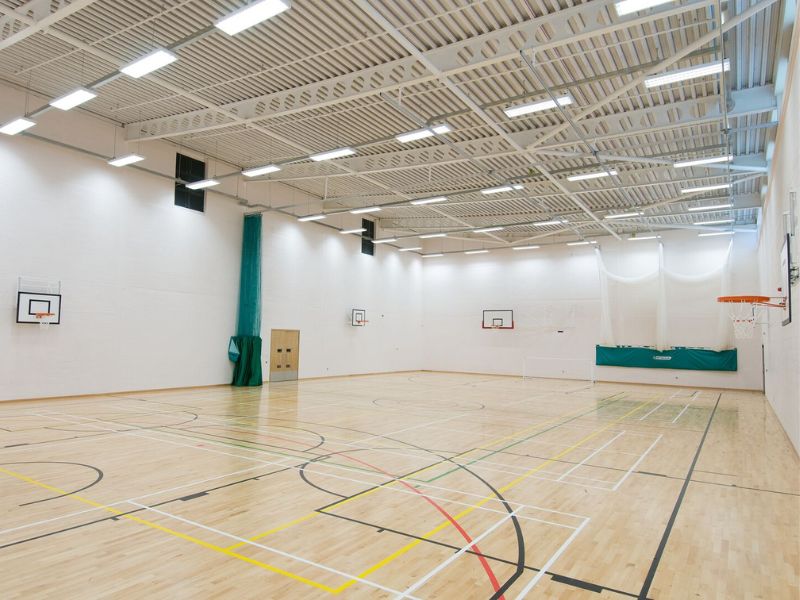

RoofDek structural liner trays provide a neat planar inner surface and structurally support the external envelope.

They are suitable for both roof and wall cladding applications, and span across the main steels, omitting the need for purlins or cladding rails.

Description

  • Structural liner trays span across the main steels to provide a neat planar inner surface.
  • Suitable for both roof and wall applications to support all roofing types and cladding.



RoofDek HLT90/600

  • Span range 3m to 4m.
  • Steel 0.75mm, 1.0mm, 1.25mm with interior liner white finish



RoofDek HLT130/600

  • Span range 4m to 6m.
  • Steel 0.75mm, 1.0mm, 1.25mm with interior liner white finish.



RoofDek HLT145/600

  • Span range 5m to 6m*.
  • Steel 0.75mm, 1.0mm, 1.25mm with interior liner white finish.
    * Limited by maximum sheet length of 12m.
Specifications
ProfileMaterialGauge and finish (mm)Weight (kg/m2)Load/Span maximum single span (mm)Load/Span maximum double span (mm)Minimum self curve (m)Cantilever (mm)
HLT 90/600Steel0.75 Interior Liner8.6231802840-800
Steel1.00 Interior Liner11.4938903780-1000
Steel1.25 Interior Liner14.3641704230-1050
HLT 130/600 Steel0.75 Interior Liner9.5741403850-1050
Steel1.00 Interior Liner12.7550805210-1300
Steel1.25 Interior Liner15.9556005820-1400
HLT 145/600 Steel0.75 Interior Liner9.8143103730-1100
Steel1.00 Interior Liner13.0853505400-1350
Steel1.25 Interior Liner16.3559506140-1500

Notes
The colour of the Interior Liner on all HLT profiles is RAL 9002.
