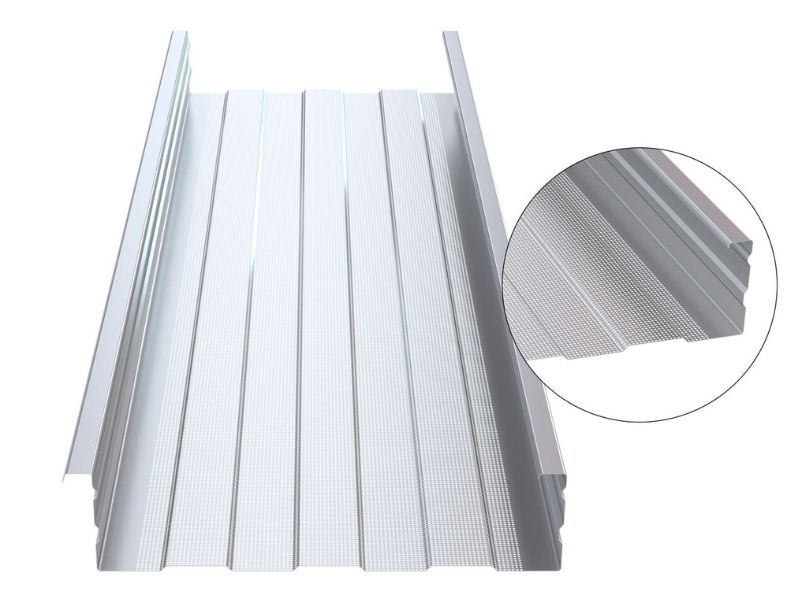

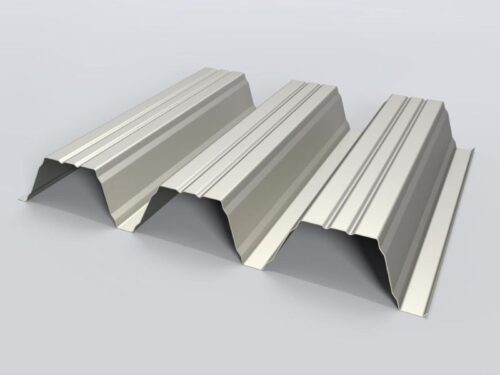

Tata RoofDek Acoustic Structural Liner Tray
RoofDek acoustic structural liner trays provide a neat planar inner surface and structurally support the external envelope.
RoofDek acoustic structural liner trays offer a wider flat soffit enabling a greater perforated area, achieving the best acoustic absorption result.
The percentage of exposed area is the open area divided by the exposed area of steel following around the profiles. The percentage of cover area is the open area divided by the plan area of the soffit.`
Description
LT90/600 perforating information
Perforating pattern P3L-S 3.0mm holes at 5.5mm square centres. Pattern open area 23.5%
Web perforated HLT 90/600 provides an open area 18.8% of exposed area, or 18.8% of the cover area
HLT 130/600 perforating information
Perforating pattern P3L-S 3.0mm holes at 5.5mm square centres. Pattern open area 23.5%
Web perforated HLT 130/600 provides an open area 18.8% of exposed area, or 18.8% of the cover area
HLT 145/600 perforating information
Perforating pattern P3L-S 3.0mm holes at 5.5mm square centres. Pattern open area 23.5%
Web perforated HLT 145/600 provides an open area 18.8% of exposed area, or 18.8% of the cover area
RoofDek D32S is part of the shallow deck profile range which enables designers to find the balance between efficiency, aesthetics and structural performance.
| Specifications | |||||||
|---|---|---|---|---|---|---|---|
| Profile | Material | Gauge and finish (mm) | Weight (kg/m2) | Load/Span maximum single span (mm) | Load/Span maximum double span (mm) | Minimum self curve (m) | Cantilever (mm) |
| HLT 90/600 perforated | Steel | 0.75 Interior Liner | 7.52 | 3150 | 2790 | - | 800 |
| Steel | 1.00 Interior Liner | 10.02 | 3550 | 3730 | - | 900 | |
| Steel | 1.25 Interior Liner | 12.52 | 3810 | 4170 | - | 950 | |
| HLT 130/600 perforated | Steel | 0.75 Interior Liner | 8.47 | 4080 | 3540 | - | 1000 |
| Steel | 1.00 Interior Liner | 11.28 | 4990 | 4830 | - | 1250 | |
| Steel | 1.25 Interior Liner | 14.12 | 5420 | 5470 | - | 1350 | |
| HLT 145/600 perforated | Steel | 0.75 Interior Liner | 8.72 | 4140 | 3420 | - | 1000 |
| Steel | 1.00 Interior Liner | 11.63 | 5250 | 4980 | - | 1300 | |
| Steel | 1.25 Interior Liner | 14.54 | 5840 | 5680 | - | 1450 | |
Notes
The colour of the Interior Liner on all HLT profiles is RAL 9002.
| Brochure | Brochure | Technical Information |
| RoofDek Range | RoofDek Manual | RoofDek HLT Acoustic Liner Tray Load Table |
 |
|
|
