Steel Sections Eaves Beams
Steel Sections is one of the leading independent manufacturers of rollformed section with over 40 years experience.
Steel Sections offer Zed Purlins, Cee Sections and Eaves Beams manufactured to customers specification, supplied cut to length and fully pierced.
Also available is a full range of accessories including Anti-Sag rods, Side Rails, Cleats etc.
Description
Steel Sections Eaves Beam is a purpose-designed profile for use as an eaves purlin, top sheeting rail and gutter support. Offered in 2 profiles for eaves beams, as recessed profile available in 190mm x 2.0mm thick and a flat-faced range with the following depths available 190mm x 2.0mm, 235mm x 2.0mm, 265mm x 2.0mm and 265mm x 2.5mm thick all available with an angled top flange from 0° – 25°.

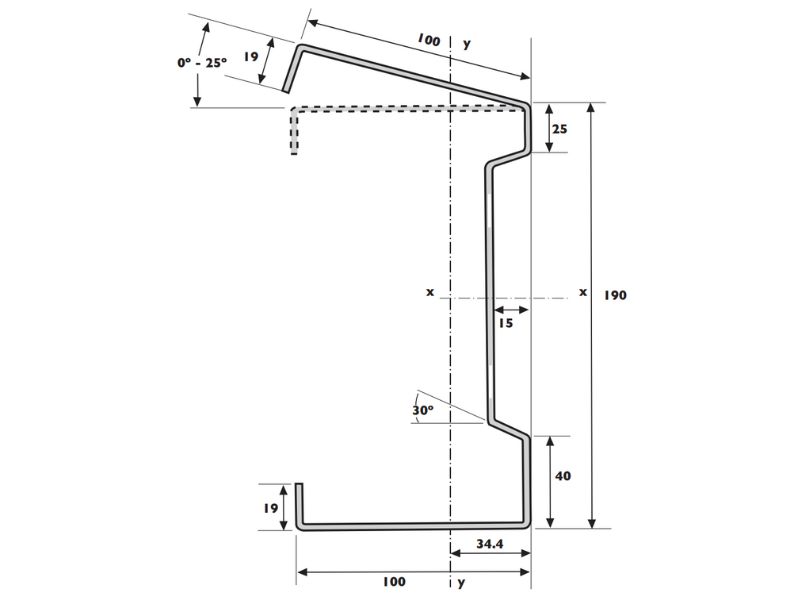

Recessed Eaves Beam
190mm deep x 2.0mm thick and has been designed to cater for spans up to 8m long, with an angled top flange from 0º to 25º

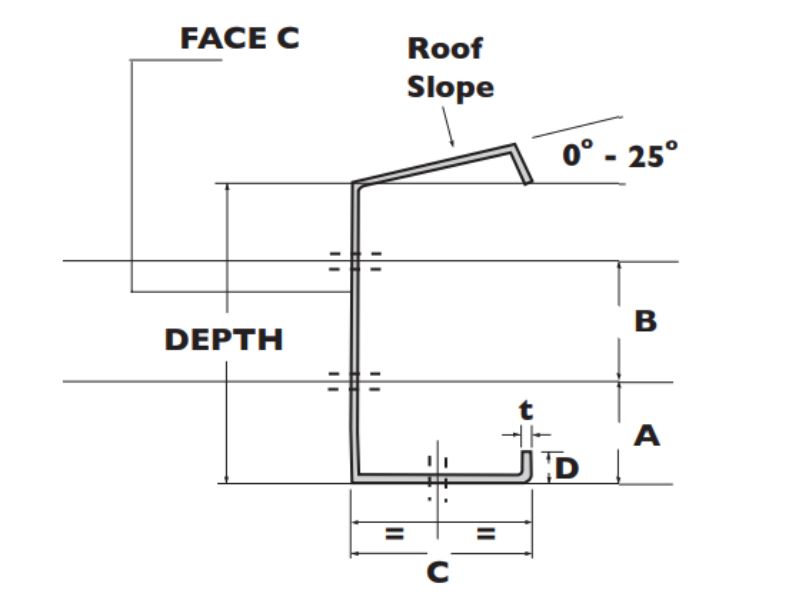

Flat Faced Eaves Beam
Available in 2.0mm and 2.5mm thickness Eaves beams have been designed to cater for spans up to 12m long, with angled top flange available from 0º to 25º. (Holes can be plain or counterformed to suit fixing requirement.)
